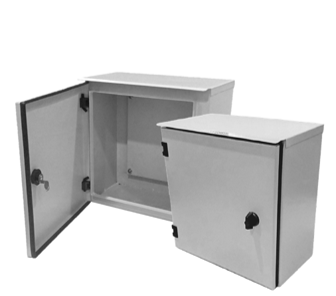

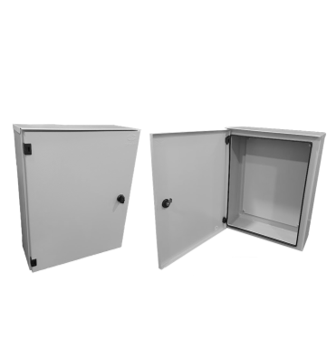

EN Outdoor Enclosure

Product Model	:	Empty Enclosure EN.WP Outdoor Series
Material	:	Electro-Galvanized (EG) Sheet
Color	:	RAL 7035 (Light Grey)
Thickness	:	1.0mm to 1.2mm
Ingress Protection Rating	:	IP54
Availability	:	Yes

Download Catalog :

Download Drawing :

– Product Table –

EN.WP Outdoor Enclosure Dimension
No.	Part No.	Body Dimension (mm)
No.	Part No.	Width (W)	Height (H)	Depth (D)
1	EN152015.WP	150	200	150
2	EN202515.WP	200	250	150
3	EN203015.WP	200	300	150
4	EN253015.WP	250	300	150
5	EN303015.WP	300	300	150
6	EN303515.WP	300	350	150
7	EN354015.WP	350	400	150
8	EN404515.WP	400	450	150
9	EN405015.WP	400	500	150
10	EN406015.WP	400	600	150
11	EN455020.WP	450	500	200
12	EN455520.WP	450	550	200
13	EN456020.WP	450	600	200
14	EN505020.WP	500	500	200
15	EN506020.WP	500	600	200
16	EN608020.WP	600	800	200
17	EN8010020.WP	800	1000	200
